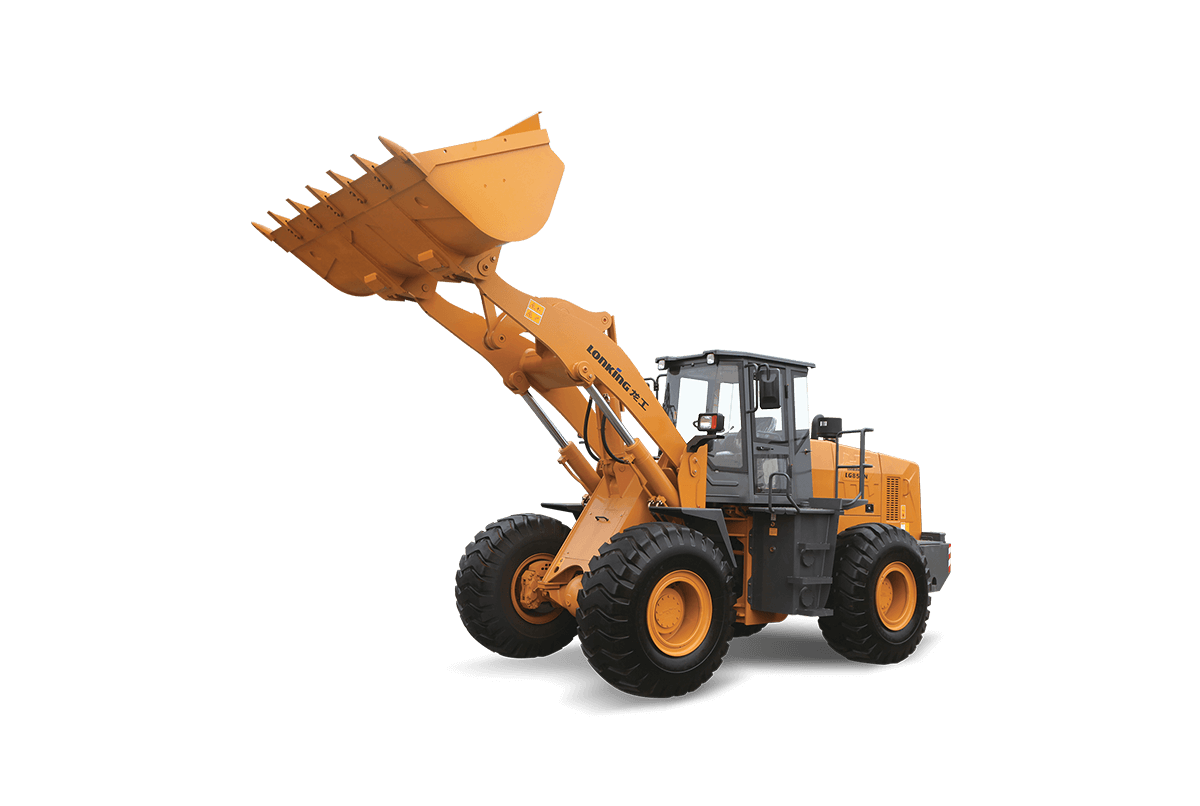

LG855N-5T-Lonking Holdings Limited

	Shift Type	Mechanical Powershift Control
BASIC	Bucket Capacity	3.0m³
	Rated Payload	5000kg
	Operating Weight	16800±300kg
	Traction Force	155±3k N
	Breakout Force	170±3k N
	L×W×H	8015(8230) ×3000×3380
ENGINE	Maker/ Model	WEICHAI/WD10G220E21
	Rated Power	162kW/2200rpm
	Maximum Torque	860N·m/ 1400-1600rpm
	Bore x Stroke (mm)	126×130mm
	No. of Cylinders / Displacement	6/9.726L
	Air Cleaner	Three Stage Air Cleaner
	Alternator	70Amp
	Battery	2-24V/ 120Ah
	Starting Motor	24V/7.5kW
DRIVE TRAIN	Transmission Type	Planetary Powershift
	Shift Type	Mechanical Powershift Control
	Pressure of Transmission	1. 1-1.5MPa
	Torque Converter Type	Single-stage,Duo-turbine,4-element
	Axles	Rigid (Front)&Oscillating (Rear)
	Rear Axle Oscillation (°)	± 10 °
	Differential	Conventional
	Main Reducer	Spiral Bevel, 1-stage Reduction
	Final Reducer	Planetary Reduction
	Tire	23.5-25 L-3 16PR TT
	Travel Speed-Forward	11.5/36 k m/h
	Travel Speed-Reverse	16 k m/h
BRAKE SYSTEM	Service Brake	Gas Push Oil Caliper Brake
	Setting Pressure	0.70-0.78MPa
	Parking Brake	Air Actuated Caliper Brake
	Emergency Brake	Air Actuated Caliper Brake
STEERING SYSTEM	Type	Hydraulic Load Sensing System
	Pump	176L/min·2200rpm
	System Pressure	15MPa
	Cylinder Type	Double Acting
	Steering Angle	±35°
HYDRAULIC SYSTEM	Type	Mechanical Shift Working Control
	Pump	110L/min·2200rpm
	Control Valve	2 Spool
	System Pressure	16MPa
	Cycle Time (Sec)	11
SERVICE REFILL CAPACITY	Fuel Tank (L)	285L
	Hydraulic Tank (L)	265/270(3rd Spool)L
	Cranks haft (L)	20L
	Transmission (L)	46L
	Front Axle/ Rear Axle (L)	28L/28L
